EC-QL150
JINPENG
| Quantity: | |
|---|---|

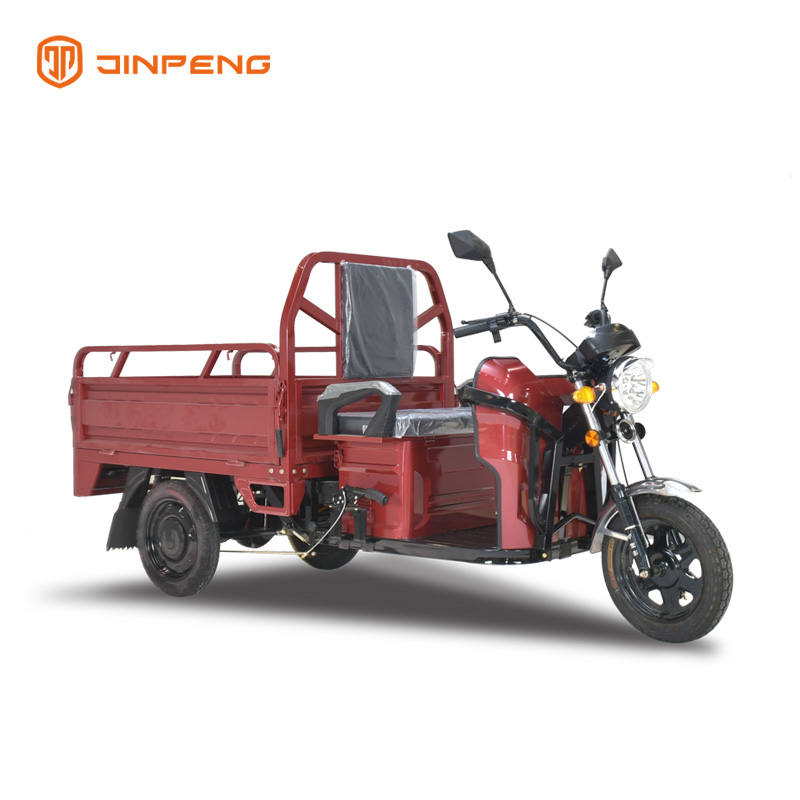

Large Load High-speed EEC Electric Cargo Tricycle
| Specification list | QL150E |
| Optional colors | red, blue, green, yellow, grey, silver |
| Vehicle code | 91831215 |
| L×W×H(mm) | 3070×1180×1412 |
| Cargo Box size(mm) | 1500×1100×340 |
| Wheel base(mm) | 2066 |
| Wheel track(mm) | 972 |
| Minumum ground clearance（mm） | ≥150 |
| Minimum turning radius（m） | ≤4 |
| Curb weight(kg) | 265 |
| Rated load (kg) | 500 |
| Max speed（km/h） | 42 |
| Grade ability（%） | ≤30 |
| Battery | 72V80AH |
| Motor, Controller（w） | 72V2200W |
| Range per charging（km） | 60-70 |
| Charging time（h） | 6～8h |
| Front shock absorber | Φ43 Disc shock absorber |
| Rear shock absorber | 50×120 Seven pieces leaf spring |
| Front/Rear tyre | 110/90-16/4.00-12 |
| Rim type | Front:Aluminium/Rear:Steel |
| Front/Rear brake type | Front:Disc/Rear:Drum |
| Parking brake | Hand brake |
| Rear axle structure | Integrated rear axle |
| CKD/SKD | 32 Units/40HQ 15 Units/20GP |
| SKD(Steel Frame) | 32 Units/40HQ 15 Units/20GP |
The QL150E is a versatile electric cargo tricycle designed for efficient transportation. With its foldable seat design, it offers convenience and flexibility for both cargo and passenger transportation.
Equipped with a high and low-speed function, the QL150E allows you to switch between speeds to match different usage scenarios. Whether you need to navigate through crowded streets or travel at a faster pace on open roads, this tricycle has got you covered.
Powered by a robust 2200W electric motor, the QL150E delivers impressive performance and acceleration. Its 72V 80Ah battery provides a longer range, ensuring you can go the distance without worrying about running out of power.
In terms of safety, the QL150E features front disc brakes and rear drum brakes, offering stable and reliable stopping power. The coordinated braking system ensures a smooth and controlled braking experience.
Experience the convenience, power, and reliability of the QL150E electric cargo tricycle for all your transportation needs.
