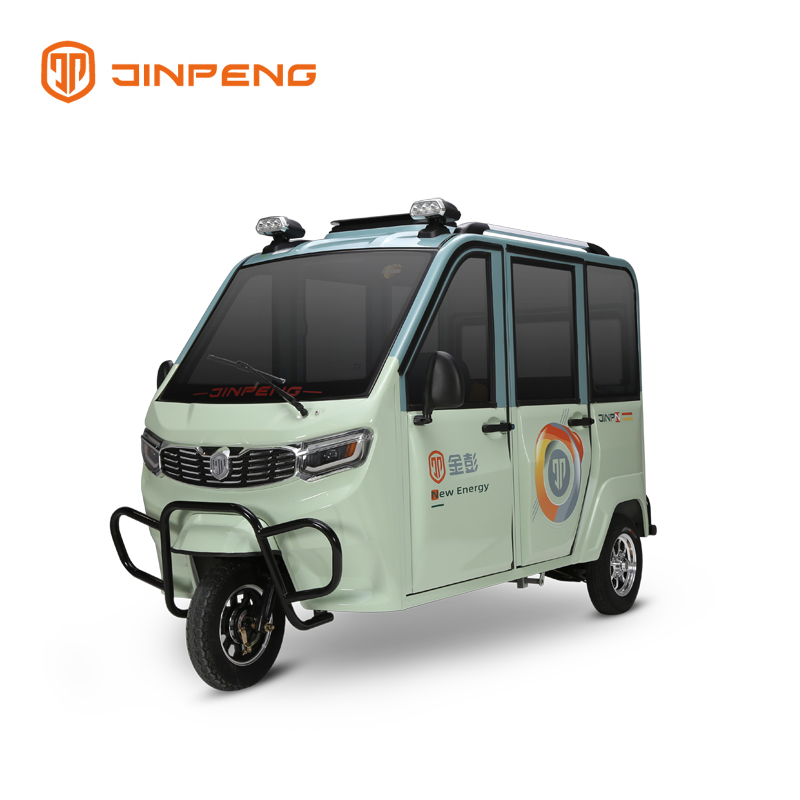

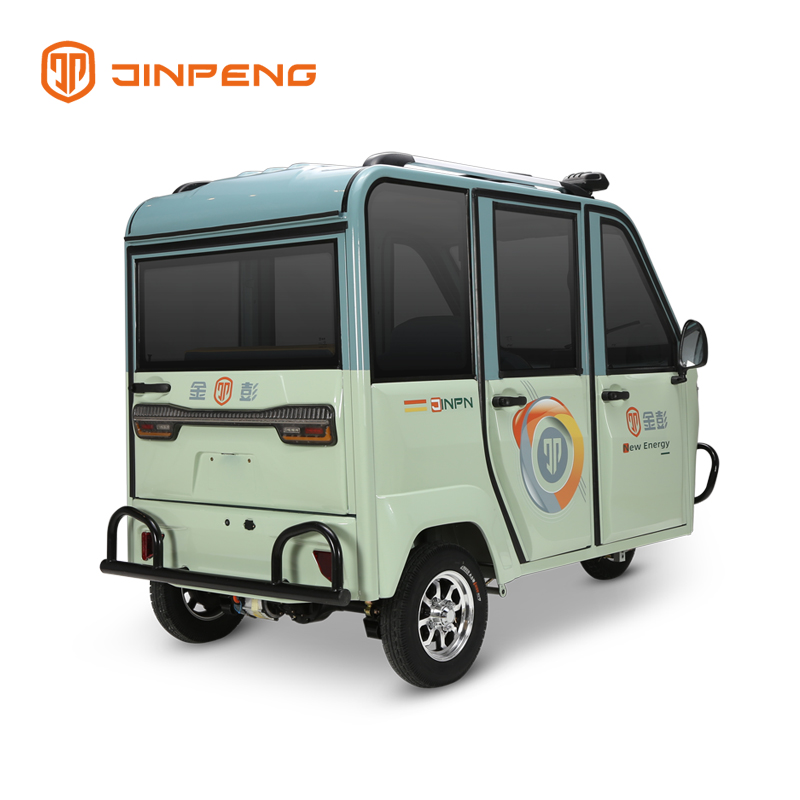

Lead-acid Battery CBS Electric Passenger Tricycle-HG

Motor(w): 60V1000W
Battery: 60V45-52AH
Max speed(km/h): 28
L×W×H(mm): 2515*1195*1650
  • HG

  • JINPENG

Availability:
Quantity:

Lead-acid Battery CBS Electric Passenger Tricycle


Optional colorsRed、White
Vehicle code91816771
L×W×H(mm)2515*1195*1650
Wheel base(mm)1850
Wheel track(mm)1010
Minumum ground clearance(mm)150
Minimum turning radius(m)4
Curb weight(kg)340
Max speed(km/h)28
Max slope of climb(%)20
Batterylead-acid:60V45-52AH
Motor, electric power control(w)60V1000W
Driving mileage at efficient speed(km)50-55
Charging time(h)6-8
Body structure4doors 4seats
Front shock absorberHydraulic shock absorption
Rear shock absorberSteel suspension
Front/Rear tyre4.0-10 Tubeless
Rim typeAluminum
Paking brakeFoot-operated rear wheel mechanical drum brake
Rear axle structureHigh-Low Rear axle
40HQ CBU9 units
20GP2 units


HG electric passenger tricycle has the following features:

  • Body design: new sheet metal shape, smooth body lines, unique and stylish bionic front face, new chrome-plated grille, high corrosion resistance and wear resistance

  • Safety design: double bumpers are set at the front and rear. The front of the car is equipped with highly translucent headlights and the rear is equipped with through-type taillights. Three-wheel linkage braking, short braking distance, safe and guaranteed

  • Large space: The entire vehicle size is 2500*1195*1670mm and the vehicle length is 2.5 meters, which makes the vehicle feel larger. The rear seats can be folded to increase cargo space.

  • Comfortable design: Foam cotton technical cloth seats bring you sofa-like comfort. HG's interior adopts level 3.0 environmentally friendly injection molding, making the luxurious interior safe and odor-free. HG uses Jinpeng's TBK ultra-quiet power system, which reduces the noise during driving by twice that of similar products.
