ZY
JINPENG
| Quantity: | |
|---|---|

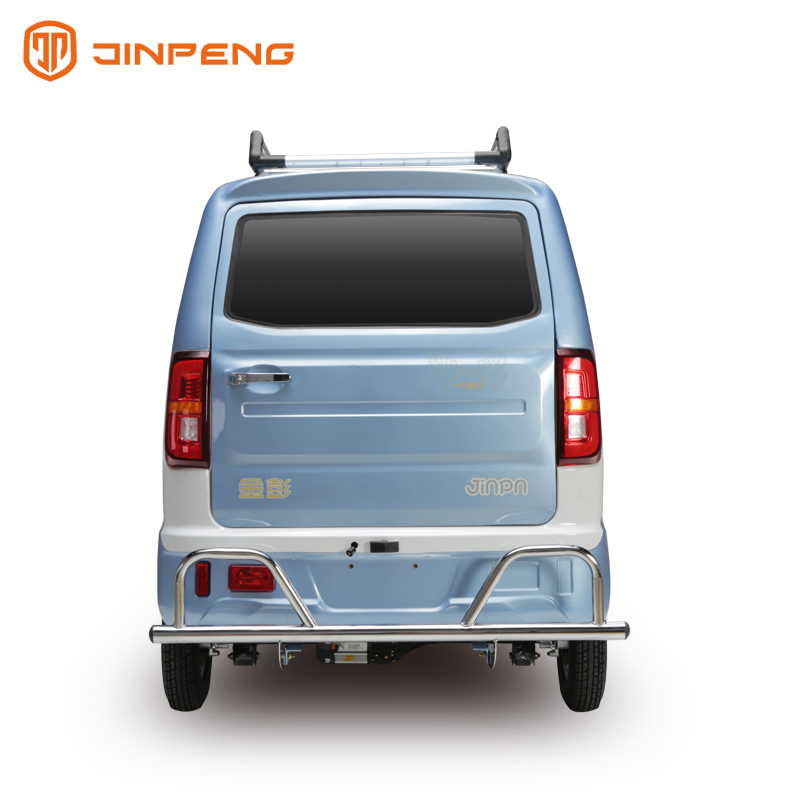

Closed Cabin Town Outing Electric Passenger Tricycle-ZY
| Optional colors | White/Black、Gray/Black、Green/White | |
| L×W×H(mm) | 2565×1275×1615 | 2565×1275×1615 |
| Wheel base(mm) | 1855 | 1855 |
| Wheel track(mm) | 1150 | 1150 |
| Minumum ground clearance(mm) | 150 | 150 |
| Minimum turning radius(m) | 3.2 | 3.2 |
| Curb weight(kg) | 333 | 333 |
| Max speed(km/h) | 30 | 30 |
| Max slope of climb(%) | 20 | 25 |
| Battery | lead-acid：60V/45-52AH | lead-acid：72V/45AH |
| Motor, electric power control(w) | 60V1000W | 72V1200W |
| Driving mileage at efficient speed(km) | 60 | 70 |
| Charging time(h) | 8 | 8 |
| Body structure | 5 doors 3 seats | 5 doors 3 seats |
| Front shock absorber | Hydraulic shock absorption | Hydraulic shock absorption |
| Rear shock absorber | Spring suspension | Spring suspension |
| Front/Rear tyre | 4.00-10 Tubeless | 4.00-10 Tubeless |
| Rim type | Aluminum Alloy | Aluminum Alloy |
| Front/Rear brake type | Front Disc/rear Disc | Front Disc/rear Disc |
| Paking brake | Handbrake | Hand brake |
| Rear axle structure | High-Low Rear axle | High-Low Rear axle |
| Glass lifts | Front electric /Rear Hand lift | Front electric /Rear Hand lift |
| Seat | Foam Seat | Foam Seat |
| Front headlight | LED | LED |
| 40HQ | 9 units | |
| 20GP | 2 units | |
Features of electric passenger tricycle ZY
Large space: The spacious cab is accessible for the driver to operate flexibly.
Comfortable experience: The ergonomic design of the seats in the car provides a comfortable experience for passengers.
Rainproof: Rain protection for passengers and driver
High-brightness headlights: High beam headlights for increased visibility
These benefits make the ZY electric passenger tricycle a popular choice for transportation needs
The Jinpeng XD is an electric passenger tricycle designed for personal mobility and leisure, suitable for short trips in urban and suburban areas. The following are some specific applications of Jinpeng ZY:
Personal transportation: The ZY is a cost-effective and eco-friendly option for personal transportation in urban and suburban areas. It's ideal for short trips around town, commuting, or visiting local markets.
Tourist attractions: The ZY can be used at tourist attractions such as parks, resorts, or hotels for sightseeing or shuttle services to nearby attractions. The electric motor helps in providing a quieter ride, reducing environmental noise pollution.
Overall, the Jinpeng ZY is a versatile and practical electric passenger tricycle with many applications and uses.
