JG110
JINPENG
| Motor: | |
|---|---|
| Battery: | |
| L×W×H(mm): | |
| Quantity: | |
| Dimensions (mm) | 2500×874×1159 |
| Cargo Box Size (mm) | 1100×815×255 |
| Wheelbase (mm) | 1696 |
| Wheel Track (mm) | 730 |
| Backrest form | Double |
| Curb weight(kg) | 120 |
| Minumum ground clearance（mm） | ≥110 |
| Minimum turning radius（m） | ≤4 |
| Rated Loading capacity (kg) | 260 |
| Max speed（km/h） | 30 |
| Maximum Climbing Slope (%) | ≤20 |
| battery | 60V32AH |
| Motor, controller (w) | 60V800W |
| Economic speed range (km) | 40-45 |
| Charging time (h) | 6～8h |

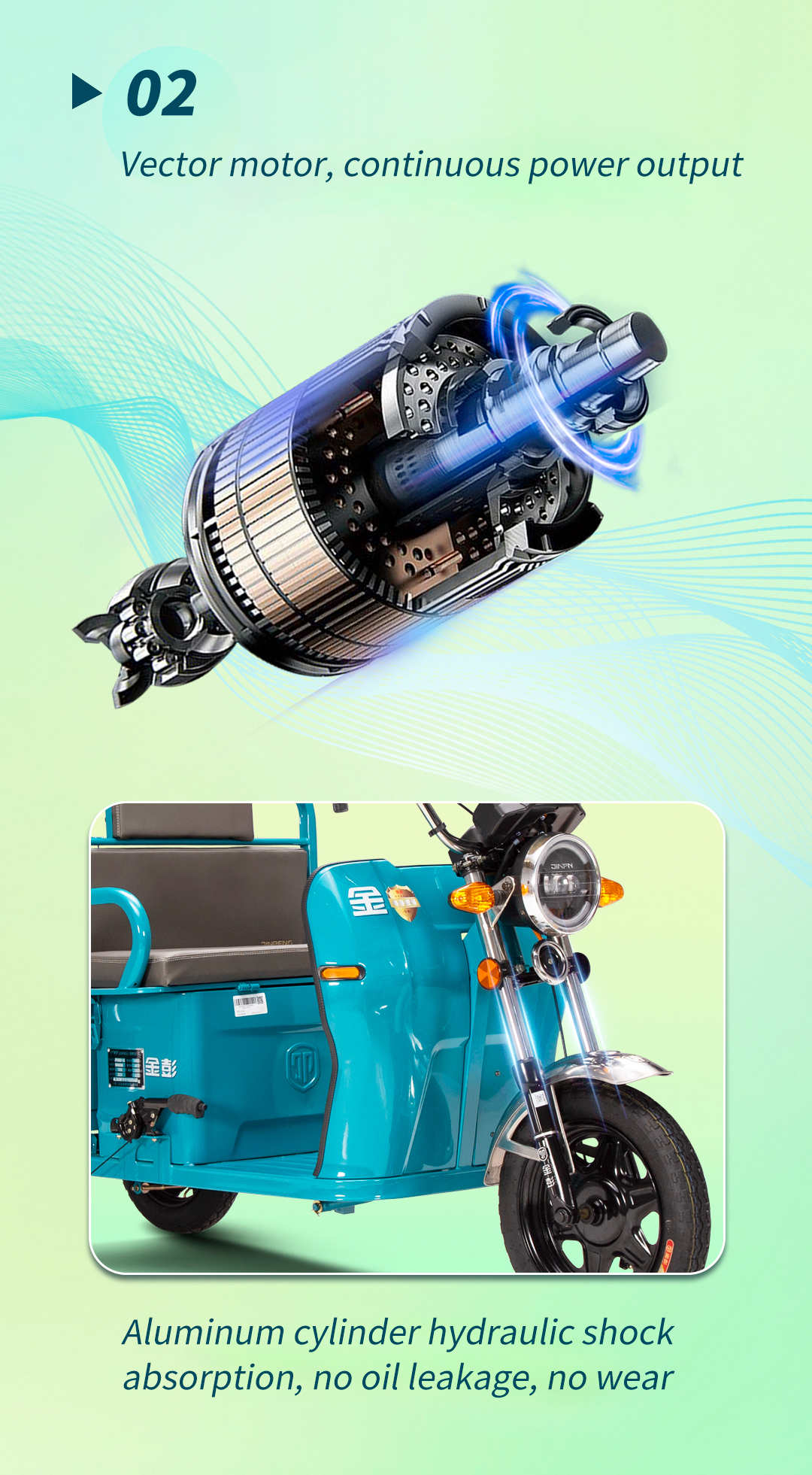

| Front shock absorption | Φ33 drum brake shock absorber |
| Front/rear tire specifications | 3.0-12 |
| Rim type | Front/rear iron wheels |
| Front/rear brake type | Front/rear drum brakes |
| Parking brake type | Handbrake |
| Rear axle structure | Split gear shift rear axle |
Cargo Dimensions: The compact cargo area measures 1100×815×255 mm, making it ideal for household use and convenient for carrying various items.
Folding Seat Cushion: The flexible design features a foldable seat cushion that can be lowered to accommodate two passengers, achieving dual functionality for both passenger and cargo transport.
Efficient Speed: With a top speed of 30 km/h, it meets the daily commuting and transport needs effectively.
Safety Braking System: The front and rear drum brake design ensures safe driving, enhancing driver confidence.
| Dimensions (mm) | 2500×874×1159 |
| Cargo Box Size (mm) | 1100×815×255 |
| Wheelbase (mm) | 1696 |
| Wheel Track (mm) | 730 |
| Backrest form | Double |
| Curb weight(kg) | 120 |
| Minumum ground clearance（mm） | ≥110 |
| Minimum turning radius（m） | ≤4 |
| Rated Loading capacity (kg) | 260 |
| Max speed（km/h） | 30 |
| Maximum Climbing Slope (%) | ≤20 |
| battery | 60V32AH |
| Motor, controller (w) | 60V800W |
| Economic speed range (km) | 40-45 |
| Charging time (h) | 6～8h |
| Front shock absorption | Φ33 drum brake shock absorber |
| Front/rear tire specifications | 3.0-12 |
| Rim type | Front/rear iron wheels |
| Front/rear brake type | Front/rear drum brakes |
| Parking brake type | Handbrake |
| Rear axle structure | Split gear shift rear axle |
Cargo Dimensions: The compact cargo area measures 1100×815×255 mm, making it ideal for household use and convenient for carrying various items.
Folding Seat Cushion: The flexible design features a foldable seat cushion that can be lowered to accommodate two passengers, achieving dual functionality for both passenger and cargo transport.
Efficient Speed: With a top speed of 30 km/h, it meets the daily commuting and transport needs effectively.
Safety Braking System: The front and rear drum brake design ensures safe driving, enhancing driver confidence.
