TL130
JINPENG
| Quantity: | |
|---|---|

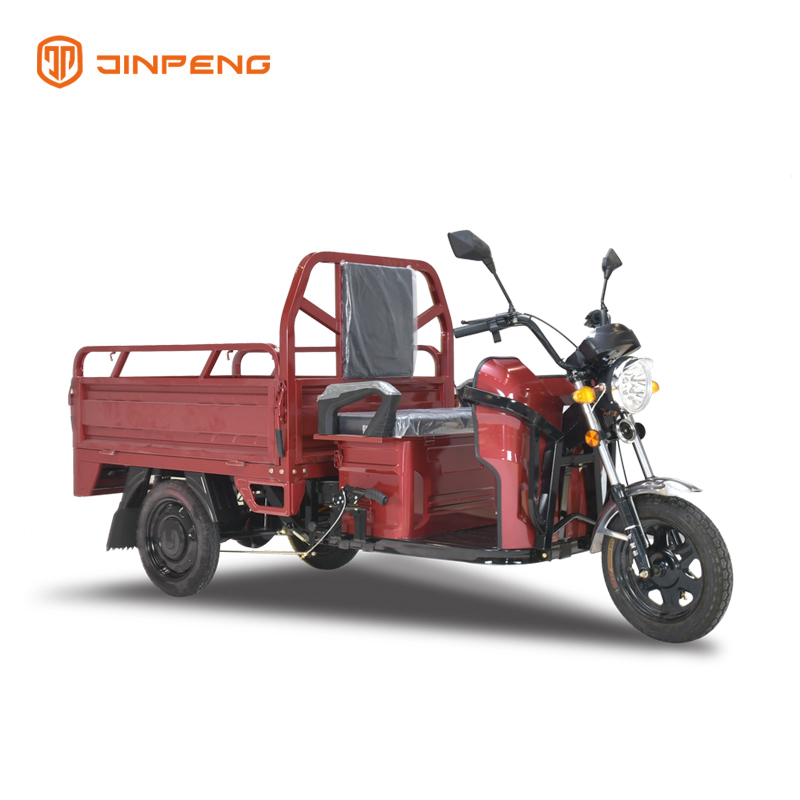

Mini Cargo Passsenger Electric Tricycle
| Specification list | TL130 |
| Optional colors | red, blue, green, yellow, grey, silver |
| Vehicle code | 91831374 |
| L×W×H(mm) | 2740×1025×1295 |
| Cargo Box size(mm) | 1300×950×300 |
| Wheel base(mm) | 1855 |
| Wheel track(mm) | 830 |
| Minumum ground clearance（mm） | ≥150 |
| Minimum turning radius（m） | ≤4 |
| Curb weight(kg) | 190 |
| Rated load (kg) | 200 |
| Max speed（km/h） | 30 |
| Grade ability（%） | ≤15 |
| Battery | 60V32AH-58AH |
| Motor, Controller（w） | 60V650W |
| Range per charging（km） | 40-70 |
| Charging time（h） | 6～8h |
| Front shock absorber | φ31 Drum shock absorber |
| Rear shock absorber | 50×85 four pieces leaf sprig |
| Front/Rear tyre | 3.00-12/3.00-12 |
| Rim type | steel |
| Front/Rear brake type | Front/Rear:Drum |
| Parking brake | Hand Brake |
| Rear axle structure | Integrated Rear Axle |
| CKD | 80 Units/40HQ 60 Units（With a shed）/40HQ |
| SKD | 50 Units/40HQ 40 Units（With shed）/40HQ |
The TL130 is an electric cargo tricycle designed for efficient transportation. With dimensions of 2740×1025×1295, it is compact enough to navigate through narrow streets with ease. Equipped with a powerful 650w motor, it provides ample power for smooth and reliable operation. The TL130 has a maximum payload capacity of 200kg, making it ideal for carrying various goods and supplies. Whether it's for deliveries or personal use, this electric cargo tricycle offers a convenient and eco-friendly solution for urban transportation needs.
