TLII150
JINPENG
| Quantity: | |
|---|---|

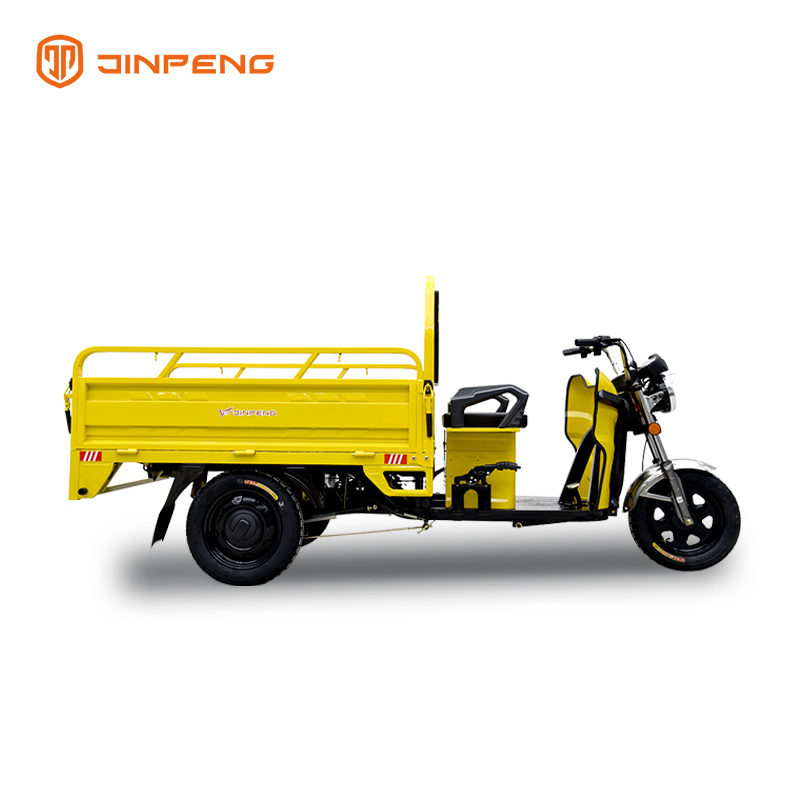

Cheap Price Drum Brake Cargo Electric Trike-TL II 150
| Specification list | TLII150 | TLII150A |
| Optional colors | red, blue, green, yellow, grey, silver | |
| L×W×H(mm) | 2900×1130×1325 | 2900×1130×1325 |
| Cargo Box size(mm) | 1500×1050×300 | 1500×1050×300 |
| Wheel base(mm) | 1980 | 1980 |
| Wheel track(mm) | 870 | 870 |
| Minumum ground clearanc(mm) | ≥150 | ≥150 |
| Minimum turning radius(m) | ≤4 | ≤4 |
| Curb weight(kg) | 200 | 200 |
| Rated load (kg) | 200 | 200 |
| Max speed(km/h) | 30 | 30 |
| Grade ability(%) | ≤15 | ≤15 |
| Battery | 60V45AH-58AH | 60V45AH-58AH |
| Motor, Controller（w） | 60V1000W | 60V1200W |
| Range per charging（km） | 50-70 | 50-70 |
| Charging time（h） | 6～8h | 6～8h |
| Front shock absorber | φ33 Drum shock absorber | φ33 Drum shock absorber |
| Rear shock absorber | 50×85 four pieces leaf sprig | 50×85 four pieces leaf sprig |
| Front/Rear tyre | 3.5-12/3.75-12 | 3.5-12/3.75-12 |
| Rim type | steel | steel |
| Front/Rear brake type | Front/Rear:Drum | Front/Rear:Drum |
| Parking brake | Hand Brake | Hand Brake |
| Rear axle structure | Integrated Rear Axle | Integrated Rear Axle |
| Vehicle lamps | Normal light (48V) | Normal light (48V) |
| CKD | 68 Units/40HQ 56 Units（With shed）/40HQ | 68 Units/40HQ 56 Units（With shed）/40HQ |
| SKD | 50 Units/40HQ 40 Units（With shed）/40HQ | 50 Units/40HQ 40 Units（With shed）/40H |
Advantages of JINPENG TL II150 Cargo Electric Tricycle
The TL II150 cargo electric tricycle has many advantages over conventional gasoline-powered vehicles. Here are some of the main benefits：
Eco-friendly: The TL II150 is an eco-friendly solution for urban freight delivery with zero emissions and low noise levels.
Cost-effective: Electric vehicles are generally more cost-effective than gasoline-powered vehicles, and the TL II150 is no exception.
Maneuverable: The TL II150's compact size and nimble maneuverability make it ideal for navigating congested city streets.
Large cargo capacity: DTL II150 has a super large cargo box, which can carry more cargo.
Low maintenance: Electric vehicles generally require less maintenance than gasoline-powered vehicles, which can help reduce costs over time.
Overall, the TL II150 cargo electric tricycle is a reliable and efficient solution for businesses looking to optimize their logistics operations and reduce their environmental footprint
Here are some specific scenarios in which the Jinpeng TL II150 cargo electric tricycle can be used:
1. Delivery services: The TL II150 is ideal for delivering packages and groceries in urban areas. Its high load capacity and compact size make it an excellent alternative to traditional delivery vehicles.
2. Tourism industry: The tricycle can be used to transport visitors and luggage between hotels and tourist sites. Its low speed and compact size make it ideal for navigating crowded streets and alleys.
Overall, the Jinpeng TL II150 is a practical and cost-effective solution for businesses and individuals who require reliable and efficient transportation of goods in urban areas.
